Demo of the wide FOV imaging mode with the SPC coronagraph

We assume that you’ve read tutorial1_corgisim.ipynb, which goes through the process of simulating coronagraph observations of an on-axis host star with off-axis companions. In tutorial1, an image is generated with the HLC coronagraph, which is used for narrow FOV imaging. This notebook demonstrates the wide FOV imaging mode with the SPC-wide (SPC_A) coronagraph, and what an image of the host star with a companion would look like.

#import necessary packages
from corgisim import scene
from corgisim import instrument
import matplotlib.pyplot as plt
import proper
import roman_preflight_proper
roman_preflight_proper.copy_here()

/home/docs/checkouts/readthedocs.org/user_builds/corgisim/envs/stable/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

#define host star properties
Vmag = 8
sptype = 'G0V'
cgi_mode = 'excam'
host_star_properties = {'Vmag': Vmag, 'spectral_type': sptype, 'magtype':'vegamag'}

#define point source properties
mag_companion = 25
companion_x_pos = 740
companion_y_pos = 740
point_source_info = [{'Vmag': mag_companion, 'magtype': 'vegamag','position_x': companion_x_pos, 'position_y': companion_y_pos}]

#initialize scene
base_scene = scene.Scene(host_star_properties, point_source_info)

#define coronagraph properties
bandpass_corgisim = '4F'
bandpass_cgisim = '4'
cor_type = 'spc-wide'
cases = ['2e-8']
rootname = 'spc-wide_ni_' + cases[0]
dm1 = proper.prop_fits_read( roman_preflight_proper.lib_dir + '/examples/'+rootname+'_dm1_v.fits' )
dm2 = proper.prop_fits_read( roman_preflight_proper.lib_dir + '/examples/'+rootname+'_dm2_v.fits' )

optics_keywords = {'cor_type':cor_type, 'use_errors':2, 'polaxis':10, 'output_dim':201,\
                    'use_dm1':1, 'dm1_v':dm1, 'use_dm2':1, 'dm2_v':dm2,'use_fpm':1, 'use_lyot_stop':1,  'use_field_stop':1 }

optics = instrument.CorgiOptics(cgi_mode, bandpass_corgisim, optics_keywords=optics_keywords, if_quiet=True)

#generate host star psf
sim_scene = optics.get_host_star_psf(base_scene)
image_star_corgi = sim_scene.host_star_image.data

#generate companion psf
sim_scene = optics.inject_point_sources(base_scene, sim_scene)
image_comp_corgi = sim_scene.point_source_image.data

#obtain total image
image_tot_corgi = image_star_corgi + image_comp_corgi

Adding 1 off-axis sources
CorgiOptics initialized with proper keywords.

#plot psf
plt.imshow(image_tot_corgi, origin='lower')

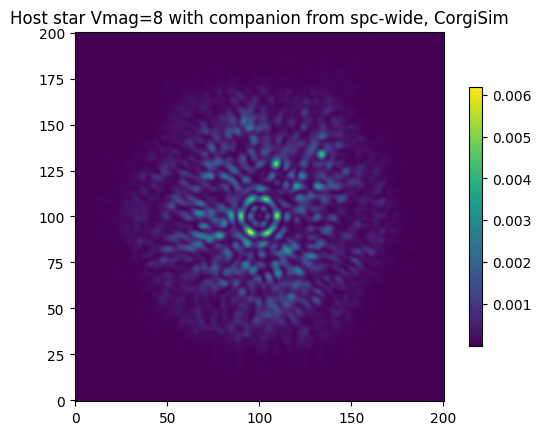

plt.title('Host star Vmag=8 with companion from spc-wide, CorgiSim')
co = plt.colorbar(shrink=0.7)

#simulate detector noise
gain =100
emccd_keywords ={'em_gain':gain, 'cr_rate':0}
detector = instrument.CorgiDetector(emccd_keywords)
exptime = 10000
sim_scene = detector.generate_detector_image(sim_scene,exptime)
image_tot_corgi_sub= sim_scene.image_on_detector.data

#plot image with detector noise
plt.imshow(image_tot_corgi_sub,origin='lower')

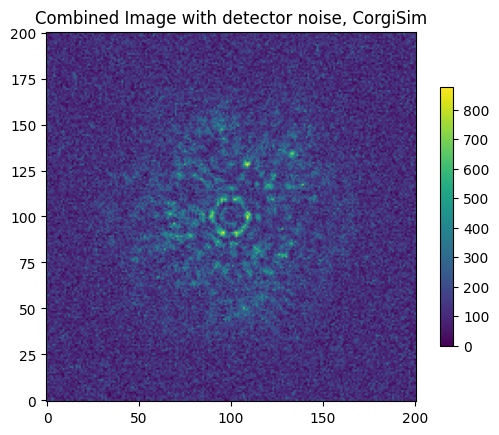

plt.title('Combined Image with detector noise, CorgiSim')

co = plt.colorbar(shrink=0.7)

#simulate full frame detector image
sim_scene = detector.generate_detector_image(sim_scene,exptime,full_frame=True,loc_x=512, loc_y=512)
image_tot_corgi_full = sim_scene.image_on_detector[1].data

#plot full frame detector image
plt.imshow(image_tot_corgi_full,origin='lower')

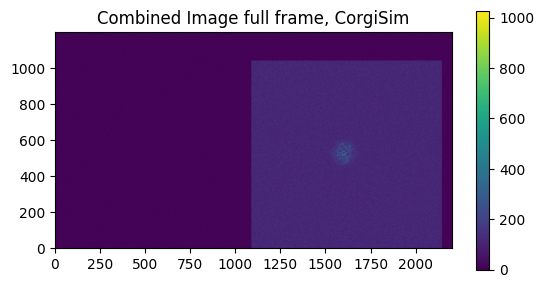

plt.title('Combined Image full frame, CorgiSim')

co = plt.colorbar(shrink=0.7)
